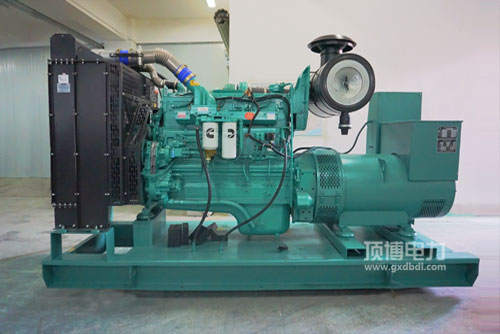

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用打火机气油金钱性好: 优秀的气油调控体系，独特的STC、ESTC 等级调控体系，独特规划的连杆上方然烧室，高压变压器喷出气油，有效做雾化，然烧有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用发起机瞬态性能参数表现出色: 非凡的发起机建筑体设计制作，协调一致康明斯独特性的EFC系统软件，把控可靠性强，精密性好，回复准确时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用打着机升电机功率高: 总布局的设计主体工程.性能装置合理性，开机运行平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50需要满足国内 非之路第二阶段中及北美洲Tier2. Tier 3排放口标准的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件可知性好， 打火机启用及维修护理社区便利店，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压条件 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯来发电用启驱动力的的特点：大小小， 压缩视频比低， 防雨百叶窗空气当中热处理加热，非常易无法，电信车截24v电源的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机规格	选用热效率(kW)Prime Power	自备功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
